METAL PROCESSING MATERIAL SOLUTIONS
THE GUND COMPANY IS THE INDUSTRY LEADER IN MANUFACTURING AND FABRICATING COMPONENTS FOR THE EQUIPMENT USED IN THE EXTRACTION, MELTING, HEATING, AND SHAPING OF METALS.
The Gund Company manufactures and fabricates a complete line of electrical insulation, mechanical wear, and elastomeric sealing components for electric heating, melting, and shaping applications. We specialize in providing custom-fabricated wear and insulation electric heating components for electric arc furnaces, ladle metallurgy furnaces, induction furnaces, smelting pot lines, and rolling mills. We understand the demanding operating environment of your applications, and the materials capable of performing in such settings.
ELECTRIC ARC FURNACES, LADLE METALLURGY FURNACES & SECONDARY CIRCUITS
Electric Arc Furnaces harness an artificial lightning bolt to melt scrap metal, most commonly steel.
Due to the tremendous electric power required to operate an arc furnace, the function and performance of the electrical insulation are critical for optimal furnace operation. The Gund Company offers insulation components that meet your most demanding application requirements, including the substation, transformer vault, secondary circuits, electrode holder arm, and bottom anode (DC). Electrical insulation components supplied by The Gund Company have been engineered to perform in one of the most challenging environments on Earth. Our years of application experience, coupled with our materials knowledge, allow us to serve OEMs, repair companies, and steel mills with unparalleled service.
Electric Arc Furnaces channel the power of electricity to create and sustain an electrical arc capable of melting 100 tons of scrap steel in forty-five minutes. To harness and control this type of energy, furnace design engineers work with The Gund Company to manufacture electrical insulation material solutions capable of handling the application’s unique combination of thermal, electrical, and mechanical requirements.
With internal temperatures as high as 3,000°C (5,432°F), the components of the electric arc furnaces endure some of the most demanding operating environments in the electrical industry. The Gund Company has specialized in electric arc furnace insulation components for over three decades. Whether helping with material selection and component design options for the OEM or developing a proactive “spares” program for the melt shops, we understand what it takes to keep the furnace making steel. During shutdowns, our engineering expertise can bring solutions on-the-fly to help melt shops get back in production.

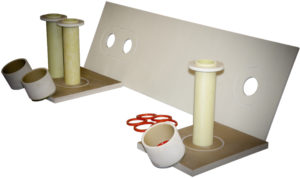

- Mast Arm Insulation Plates
- Insulating Washers
- Insulating Tubing
- Mast Arm Bolt Covers / Caps
- Electrode Clamp Insulation
- Phase Barriers
- Bottom Electrode Insulation
- Bus Bar Clamps
- Roof Lift Insulation
- Transformers Vault Insulation
- Delta Closure Insulation
| Common Rigid Insulation Materials Used in Electric Arc Furnaces | ||
|---|---|---|
| G-12, EPGC 308 | G10, EPGC 201 | G9, MFGC 201 |
| G-7, SIGC 202 | GPO-3, UPGM 203 | C, CE, LE, PFCC 201/202/204 |
| Mica M, Mica P | N220 Class R GPO-1 | NAD-11 (Fiber Cement Boards) |
| Transite 1000, Transite HT | Arboron® | X/XX/XXX, PFCP 201/202/204 |
| G-11 EPGC 203 | Click here to view additional material datasheets. | |
INDUCTION FURNACES
Use an electrically-induced magnetic field to heat metal to its melting point for further processing.

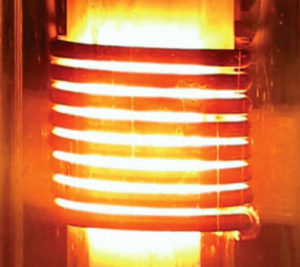

The two most common induction furnaces are coreless and channel furnaces, with coreless furnaces being the most common. Induction coils pass electrical current through insulated copper turns shaped like an enormous spring. The copper turns must be electrically insulated from each other to prevent short circuits in the coil. The Gund Company custom fabricates components for all major OEMs and related repair companies of induction heating equipment in North America.
In this application, the electrical insulation materials fabricated by The Gund Company perform a critical role. Our application experience and materials knowledge allow our customers to obtain optimal performance from their equipment. The Gund Company manufactures and fabricates a complete line of insulating components for induction furnaces, electric heating applications, and related power supply equipment.
Our long history of developing electrical insulation component solutions for these high-temperature applications provides our customers with a knowledge source of responsive options for spare parts to keep them in operation. To learn more about our induction furnace insulation components, request a lunch-and-learn event at your facility. Our presentation will focus on insulation materials engineering for the most demanding metal processing applications.
With our years of application experience, coupled with our materials knowledge, The Gund Company is here to serve OEMs, repair companies, and foundries with unparalleled service.
INDUCTION FURNACE INSULATION COMPONENTS:
- Coil Supports
- Coil Spacers
- Insulating Tubing
- Top & Bottom Panels
- Side Panels
- Insulating Rings
- Slip Plane Insulation
| Common Rigid Insulation Materials Used in Induction Furnaces | ||
|---|---|---|
| G-12, EPGC 308 | G10, EPGC 201 | G9, MFGC 201 |
| G-7, SIGC 202 | GPO-3, UPGM 203 | C, CE, LE, PFCC 201/202/204 |
| Mica M, Mica P | N220 Class R GPO-1, UPGM 201 | Cement Board |
| FR4, EPGC 202 | Arboron® | X/XX/XXX, PFCP 201/202/204 |
| G-11 EPGC 203 | Click here to view additional material datasheets. | |
The Gund Company also offers a wide variety of high-temperature elastomeric materials available for all your enclosure sealing, O-ring, thermal shielding and gasket needs.
SMELTING APPLICATIONS
Electrolytic smelting furnaces are mostly used for the reduction of aluminum.
In this application, the electrical insulation materials fabricated by The Gund Company perform a critical role. Our application experience and materials knowledge allow our customers to obtain the optimal performance for the equipment. Our years of application experience, coupled with our materials knowledge, will enable us to provide aluminum smelters with a complete range of insulation components that meet their most demanding requirements.
Smelting Application Components:
- Bus Bar Insulation
- Pot Footing/Cradle Leg Insulation
- Anode Clamp Insulation
- Tap Door/Cell Cover Insulation
- Crust Breaker Insulation
- Walkway Support Insulation
- Wedge Insulation
- Shunt Insulation
- Feed Cylinder Insulation
| Common Rigid Insulation Materials Used in Smelting Applications | ||
|---|---|---|
| G-12, EPGC 308 | G-10, EPGC 201 | G-9, MFGC 201 |
| G-7, SIGC 202 | GPO-3, UPGM 203 | C, CE, LE, PFCC 201/202/204 |
| Mica M, Mica P | N220 Class R GPO-1, UPGM 201 | NAD-11 |
| Transite 1000, Transite HT | Arboron® | X/XX/XXX, PFCP 201/202/204 |
The Gund Company also offers a wide variety of high-temperature elastomeric materials for all your enclosure sealing, O-ring, thermal shielding, and gasket needs.
ROLLING MILL APPLICATIONS
The Gund Company offers a complete line of wear and elastomeric sealing components for rolling mill applications.
We specialize in providing custom fabricated wear components for roll bending, roll forming, flat rolling (hot strip mill, cold rolling mill), ring rolling, wired-rod mill (wire), tube mill (tubes), structural shape rolling (bar, profiles), controlled rolling and forge rolling.
We understand the demanding operating environment of your applications and the materials capable of performing in such settings. Additionally, we know the driving factors for rolling mills are improving safety & production while reducing cost. The Gund Company offers these capabilities by understanding the Mechanical, Physical and Chemical requirements of the application(s) and the material’s ability to cope with such requirements.
Rolling Mill Application Components
- Transportation Rollers
- Spindle Grease Pumps
- Thrust Collar – Friction Bearings
- Mandrel Segments
- Chock Liners
- Coupling Elements
- Slipper Pads
- Wear Plate
- Wipers & Stripper Tips
| Common Rigid Insulation Materials Used in Rolling Mill Applications | ||
|---|---|---|
| G-12, EPGC 308 | G-10, EPGC 201 | G-9, MFGC 201 |
| G-7, SIGC 202 | G5 | G-3 |
| C, CE, LE, PFCC 201/202/204 | Nylon 6 | Ranprex Laminated Wood |
| G11 EPGC 203 | ||
The Gund Company also offers a wide variety of high-temperature elastomeric materials for all your enclosure sealing, O-ring, thermal shielding, and gasket needs.
