ELECTRIC VEHICLES

THE GUND COMPANY MANUFACTURES CUSTOM-ENGINEERED FLEXIBLE MATERIALS WITH STATE-OF-THE-ART FABRICATION CAPABILITIES.

flexible materials

Found in automotive, recreational, eVTOL, and charger applications, our material options provide unique solutions across the electrical vehicle industry.

The Gund Company can provide short lead times on prototypes while also offering flexible material selection guidance and collaboration.

Electric vehicle icon

FLEXIBLE MATERIAL SOLUTIONS

UTILIZING FLEXIBLE OPTIONS IN BATTERY DESIGN PROVIDES MANY ADVANTAGES. WEIGHT REDUCTION, SPACE REDUCTION, AND COST REDUCTION ARE ALL OUTCOMES IF THE OPTIMAL MATERIAL IS DESIGNED INTO THE UNIT.

Although flexible materials generally don’t provide structural support, they are an ideal solution for insulation applications.

Like other power conversion equipment, it is necessary to insulate the cells and modules within the battery pack. The Gund Company manufactures flexible insulation materials optimized for battery cells, modules, and packs.

Batteries designed using prismatic cells often require flexible material insulation between the cells and the module housing, between the modules and the enclosure lid, and between the modules themselves.

Electric Vehicle Battery Diagram

Batteries designed using cylindrical cells require insulation in the same areas, although the geometry may be different. It’s critical to insulate the terminals from the cell case. Arcing because of insufficient dielectric insulation can cause failure or lead to a thermal event. Polypropylene-based materials such as PolyPro FR® and PolyPro EV™ provide the necessary protection to prevent these events.

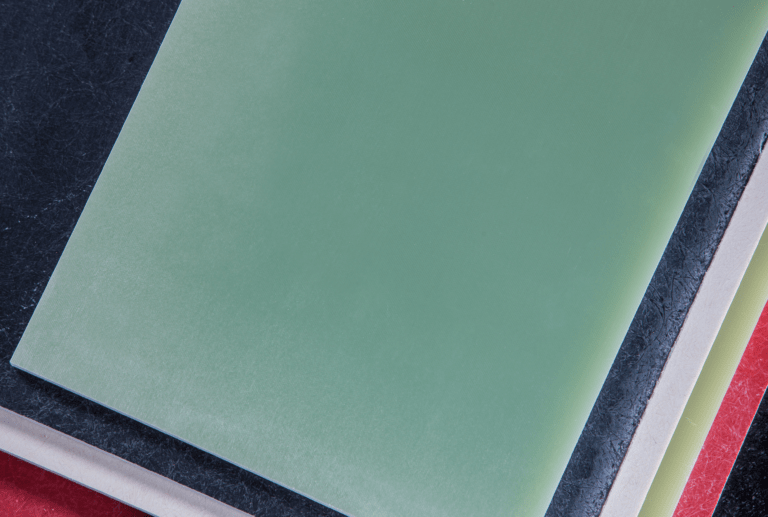

More robust material such as Propellis™ provides further support in thinner profiles. It can be used as an alternative to rigid glass epoxy materials such as G10/FR4, but available in roll form for large-scale manufacturing at a lower manufacturing cost.

Regardless of battery configuration, The Gund Company provides flexible material options in these areas. Our PolyPro FR®, PolyPro EV™, and Propellis™ materials provide optimal properties in a flexible form at a low price.

PRODUCTS

UL V-O Flame-retardant polypropylene designed for module and pack insulation.

Advantages
  • Excellent formability for complex shapes
  • High dielectric strength for high-voltage batteries
  • Roll form supports mass manufacturing
  • Wide thickness range: 0.010″ – 0.125″
  • 10%+ cost savings over equivalents like Formex®

Polypropylene-based insulating film used primarily in battery cells.

Advantages
  • Ultra low-cost
  • Roll form supports mass-manufacturing
  • Wide thickness range: 0.010″ – 0.125″
  • Custom colors
  • High dielectric strength for larger cell
    capacities
Propellis Flexible Composite Solution Logo

Single-layer woven glass fabric with a high-temperature epoxy resin designed for module, pack, and charger insulation.

Advantages
  • Ultra-thin profiles – down to 0.005″
  • Withstands increased temperatures
  • Roll form supports mass manufacturing
  • High tensile and compressive strength
  • A composite solution in tight areas

The Gund Company also offers flexible materials found outside of the battery pack. G-Flex® YT510 by The Gund Company is a low-cost alternative to Nomex® 410.

This flexible aramid paper solution is perfect for AC motor applications like those found in EV drives.

Click here to learn more about G-Flex YT510 and our other motor material solutions.

Advantages

 – Thickness as low as 0.002”

 – 20%+ cost savings over alternatives like Nomex® 410

The Gund Company has over 70 years of converting and manufacturing experience using hundreds of materials. Click here to learn more about our other flexible material solutions. Note: link goes to flexibles laminates, papers, films section on material data sheet page.

COMPOSITE SOLUTIONS

UTILIZING COMPOSITE OPTIONS INSTEAD OF ALUMINUM OR STEEL IS NOT ONLY A GREAT WAY TO REDUCE WEIGHT AND COST, BUT ALSO IMPROVES BATTERY MANAGEMENT.

Although it is not possible to replace metals in some areas, a composite alternative will often improve overall pack design without sacrificing strength requirements satisfied by metal.

Composite Parts of Electric Vehicle

Weight reduction – Composites can reduce aluminum enclosure weight by 30%.

Thermal control – Composites typically exhibit low thermal conductivity. Utilizing a composite material in the lid, tray, or frame can help control battery temperature by driving heat to thermally-conductive areas.

Dielectric control – Composites can serve as an electrical insulator. Subsequent dielectric barriers mounted to the lid, frame, or tray may not be necessary which can reduce the pack footprint and number of parts.

Cost control – Molded composites can combine parts in one piece, reducing the number of parts in the pack. This can increase throughput by reducing manufacturing time.

Found in automotive, rail, recreational, and eVTOL applications, The Gund Company manufactures custom molded composites for battery packs, electrical insulation application, and thermal barrier applications. Our molding and additive manufacturing capabilities allow us to provide a custom solution to ensure our customers achieve the best performance possible. Click here for more information on our specialties from our engineering team.

APPLICATIONS

Pack Composites

Given the many advantages of composites, it’s no surprise the usage of these materials has increased. Regardless of the application area requirements, The Gund Company has a solution.



Application Areas:
  • Covers – Reduce weight and upward heat transfer with an electrically-insulative material.
  • End Plates – Maintain the cell stack modules, insulate them from other components, and control heat transfer.
  • Brackets – Isolate modules and cell groupings to minimize the risk of a thermal event.

Electrical Insulation Components

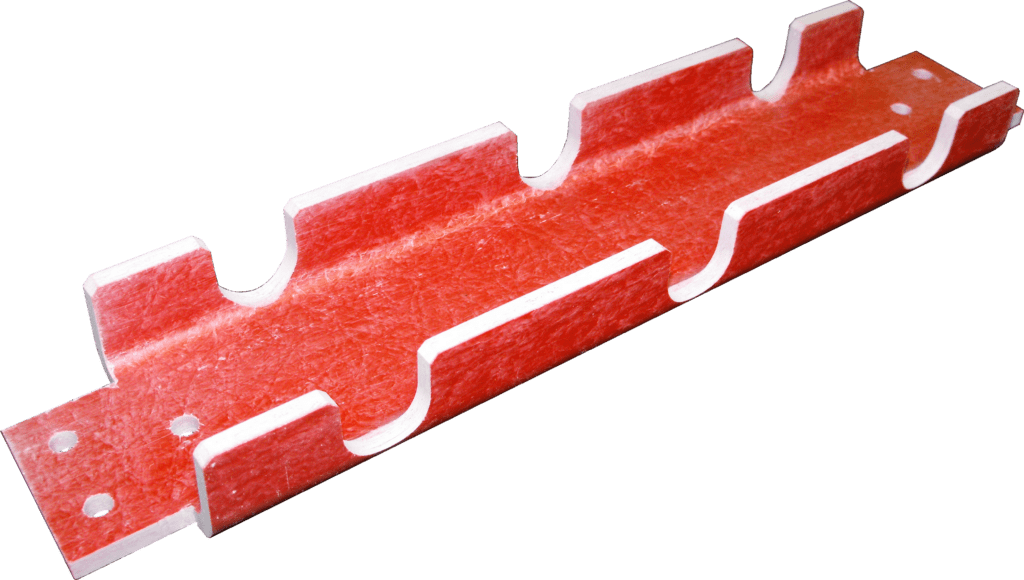

The Gund Company can provide rigid electrical insulation composites by machining or custom-molding. Machining is an economical way to make flat parts, but molding by BMC or SMC offers other advantages.



Advantages:
  • Reduces the number of components by combining them in a molded part.
  • Offers the same insulative properties as rigid products.
  • Supports high-volume manufacturing.
  • Low-cost tooling compared to injection molding.

Thermal Protection

Managing thermal radiation of a battery is critical. Using thermally-insulative materials to control the direction of heat transfer can significantly reduce the risk of a thermal event.



Materials:
  • FST composites – High-temperature materials passing flame and smoke toxicity standards in the rail, aerospace, auto industries.
  • Flex Mica – Mica can withstand extreme high-temperature environments. Flex mica serves as a thermal barrier and can flex to meet the contour of the battery enclosure.
  • Rigid Mica – Offers the thermal advantages of flex mica while also offering structural support.
Fusetubes from The Gund Company

Pack Fuses Tubes

Fuses are used for on-board charging protection, DC auxiliary circuit protection, and switching and protection of drive inverters and batteries. The Gund Company manufactures the insulative body of the fuse.



Features:
  • UL94 V-0
  • Material meets NEMA standards application requirements.
  • Supports voltages up to 1000V





CHARGER SOLUTIONS

THE GUND COMPANY SPECIALIZES IN INSULATION MATERIALS USED IN POWER SUPPLY, CONVERSION, AND HIGH-VOLTAGE DISTRIBUTION EQUIPMENT.

We manufacture materials and fabricate components used for inverters, rectifiers, transformers and power supplies associated with DC and AC Electric Vehicle chargers. Our flexible, rigid, and elastomeric materials provide optimal performance properties.

APPLICATIONS

Power Equipment Insulation

Power conversion equipment within a battery charger requires insulation to prevent static discharge between components.

The Gund Company provides enclosure insulation and PCB liners to prevent this discharge.

Benefits:
  • High dielectric strength to prevent breakdown
  • Thin gauges protect tight spaces
  • UL94-V0 flame rating

Sealing

Battery charging systems must withstand the outside elements daily.

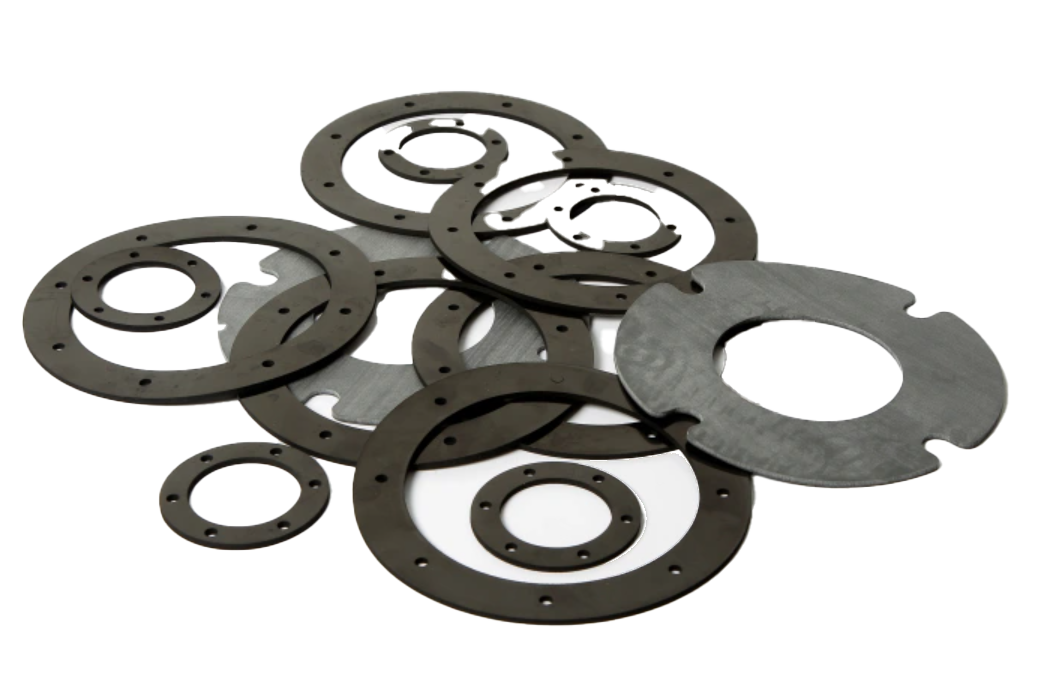

Sealing materials are essential to prevent moisture or debris from entering the charger, leading to equipment failure.

Materials:
  • Prevents moisture or debris from entering the charger
  • A wide selection of materials provides a perfect solution based on application requirements
  • Durable materials provide sealing for the duration of charger operation
Wires

Polycarbonate

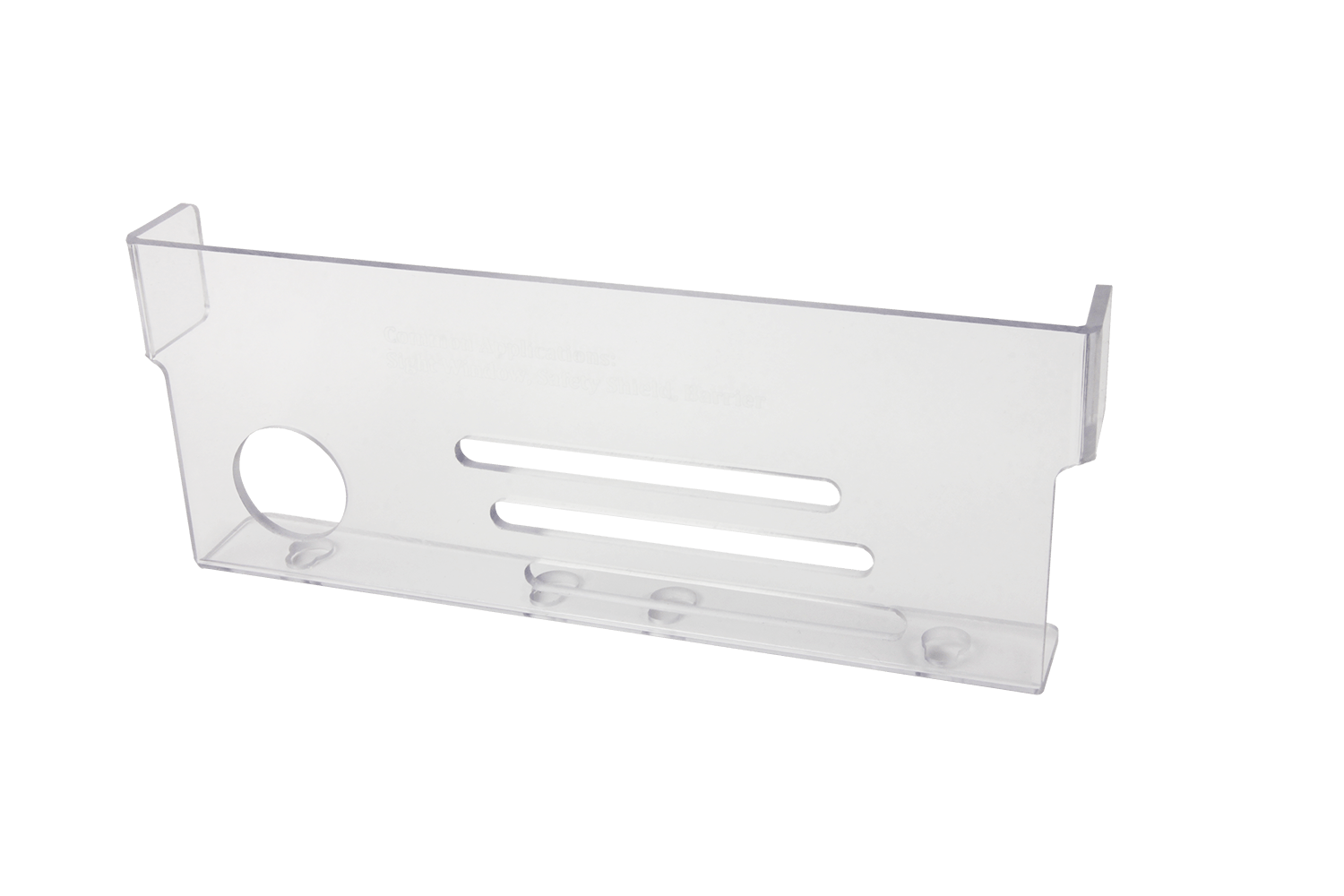

The Gund Company fabricates high-impact strength polycarbonate to protect components in a battery charger and protect users from dangerous voltages.

Benefits:
  • Easy to clean and moisture-resistant
  • Transparent to identify components without direct exposure to electrical equipment
  • UL94-V0 and 5VA Flame rating options

Fuse Tubes

Similar to fuses used in EV battery packs, The Gund Company manufactures fuse tubes used for fuses in EV charging equipment

Benefits:
  • UL94 V-0
  • Material meets NEMA standards application requirements.
  • Supports voltages up to 1000V

Switchgear

Along with DC fast chargers, The Gund Company manufactures materials and components for high-voltage EV switchgear equipment.

End Product Applications:
  • Fuses
  • Breakers
  • Standoff insulators
  • Power distribution/supply equipment
