Flexible Insulation Products
G-flex: Low Cost Flexible Insulation Alternative to Nomex®
G-FLEX™ IS THE GUND COMPANY’S BRAND OF FLEXIBLE INSULATION PRODUCTS.
G-Flex™ product line includes aramid paper, flexible laminates (i.e., DMD, NMN), wire sleeving, felts, cordage and surge ropes, and insulating tapes. The Gund Company has used its broad engineering and application knowledge along with extensive testing and global relationships to bring our customers the G-Flex™ products.
YT510 High-Temperature Calendered Aramid Paper
YT511 High-Temperature Uncalendered Paper
APA Flexible Laminate Composed of Aramid Paper & Polyester Film

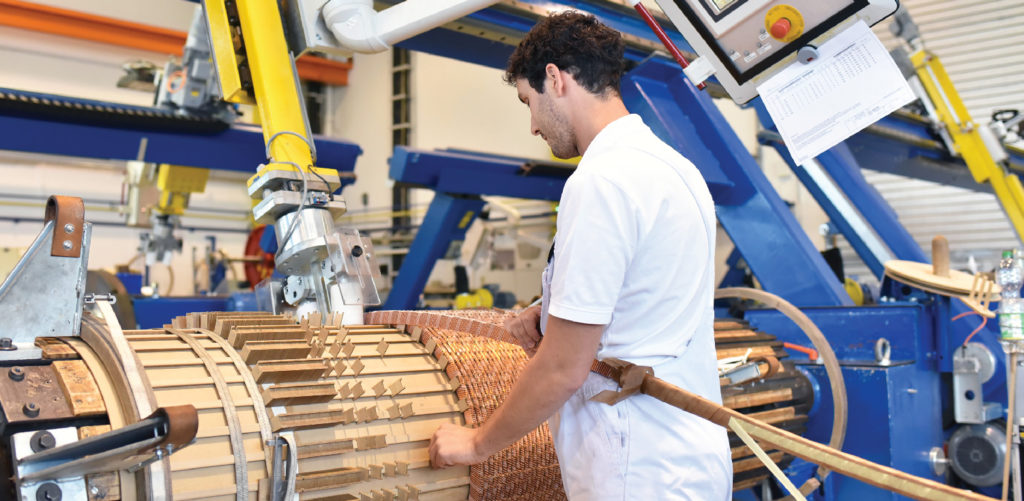

The G-Flex™ is used in a variety of electrical applications. Some specific examples are transformer coil layer insulation, motor slot insulation, lead wire protection, insulation barriers, and numerous other applications.
G-FLEX™ MARKETS
Motors & Generators Insulation Products
- Slot liners
- Turn insulation
- Wire wraps
- Phase insulation
- Wire insulation sleeving
- Coil bindings
Transformers Insulation Products
- Core insulation
- Layer insulation
- Conductor insulation
- Intra coil phase barriers
- Cross over pad insulation
- Lead insulation
- Wire insulation sleeving
G-FLEX™ ARAMID PAPER
G-Flex™ YT510 meta-aramid paper is manufactured from 100% aramid fibers. It carries a Temperature Index (TI) of 210°C, a VTM-O Flame Rating, and full UL approval (File #: E521153).
This paper offers high inherent dielectric strength, mechanical toughness, flexibility, and resilience. Applications for G-Flex™ include stator slot liners, phase insulations, coil wrap, conductor wrap, and other insulation applications for the electrical industry.
| META-ARAMID PAPER LITERATURE | |||
|---|---|---|---|
| Data Sheet YT510 | Yellow Card | Line Card | SDS |
| Data Sheet YT511 | Yellow Card | SDS | |
META-ARAMID PAPER WITH METASTAR BENEFITS
- Heat Resistance: G-Flex™ YT510 meta-aramid paper has long-lasting thermal stability. It can be used for many hours at high temperatures while maintaining excellent dimensional stability. It will not embrittle, soften or melt when it is exposed temporarily at high temperatures of 300℃.
- G-Flex™ YT511 is the uncalendared version of YT510, giving it a lower density and increased absorption characteristics. It has the same chemical composition and thermal performance as G-Flex™ YT510
- Flame Resistance: It is inherently flame resistant. It does not self-burn or melt in the room air, is non-combustion supporting, and has the property of self- extinguishing.
- Electrical Insulation: The meta-aramid fiber has very good electrical insulation properties. The dielectric strength of meta-aramid paper is more than 20kv/mm.
- Chemical Stability: Meta-aramid fiber has a very stable chemical structure. It is resistant to most strong inorganic acid and to alkalis at room temperature.
- Recognized by Underwriters Laboratories (UL) as a 210°C insulation.
- Sold directly from The Gund Company and readily available in 7 locations in 4 countries.
- G-Flex™ meta-aramid papers from The Gund Company is a UL certified product: File # E521153
- Excellent Dielectric Breakdown strength
- Additional thicknesses are available upon request.
G-FLEX™ APA LAMINATES
Calendered and uncalendared papers and electrical grade polyester film bonded with the patented high-temperature adhesive technique are ordered. At high temperatures, these laminates will not delaminate or blister. The polyester film provides excellent dielectric strength, mechanical toughness, rip, tensile, and burst strength. Long-term thermal stability is achieved using Aramid paper and high-temperature adhesive. Applications for G-Flex™ APA include stator slot liners, phase insulations, coil wrap, conductor wrap, and other insulation applications for the electrical industry.
| APA LAMINATES LITERATURE | |
|---|---|
| Data Sheet APA | Line Card |
APA LAMINATES BENEFITS
- Heat Resistance: G-Flex™ APA has long-lasting thermal stability. It can be used for many hours at high temperatures while maintaining excellent dimensional stability. It will not embrittle, soften or melt when it is exposed temporarily at high temperatures of 300°C.
- Flame Resistance: It is inherently flame resistant. It does not self-burn or melt in the room air, no combustion-supporting, and has the property of self- extinguishing.
- Electrical Insulation: The meta-aramid fiber, plus the polyester film has very good electrical insulation properties. The dielectric strength of meta-aramid paper plus the polyester film can provide more than 20kv/mm.
- 155-180°C ratings
- More cost-effective than pure aramid paper of the same thickness
- High Tensile strength
- High Dielectric Strength
- Excellent Impregnability
- Thermally Stable
- High Tear Strength
